The following are the analysis options in beSOURCE:

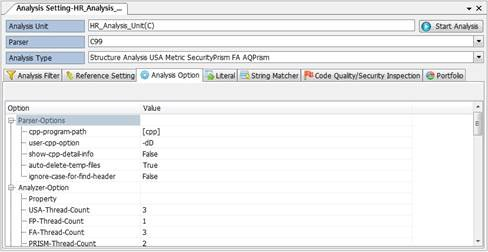

C language


AttributeDefault valueDescription
Parser-Options
not-expands- macros
Macros listed here are not expanded. ”,” can be used for delimiter.
reference- header-path
Set additional header’s path in Analysis Server. Additional header means it is not collected but required to analyze source file. This kind of header is considered as a system header internally.
auto-delete- temp-filesTrue

Configure whether to maintain temporary files.

Temporary files include EXEC SQL processing details, source file including header file and GCC log.

  • If it is true, delete temporary files.
  • Temporary file is created as a type of '[source file name].conv2' in the location below.
[CM Installed Directory]/SRC/temp/[Analysis Unit ID].
ignore-case- for-find- headerFalseIt is not case sensitive for header included in preprocessing, in case of sources written in Windows. When searching for header in True, it is also not case sensitive.
user-cpp- option
-dD

Configure options for C pre-processor.

-I : Add forcibly to include path Ex) - I/usr/include/

Used when analyzing Unix source in Windows

-include: Include external file Ex) - include /cm40/cmbuiltin.h

Used when adding specific type or macro

-isystem: Set target path to system directory.

In case of using more than 2 options, separator is ‘;’.
search- header-from-FalseSearch header files with the current Analysis Unit's file path when searching user defined header file (#include ”…“ format).
top
If this option value is true, header files in which high priority Analysis Unit are expanded first.
cpp-program- path[cpp]

* It is a deprecated option.

Set up C pre-processor as an executable file of GCC. Option for automatic configuration of standard header file. (Required)

  • Unix: /usr/include/cpp
  • Windows: cpp.exe (Environment variable ‘Path’ should be configured first)
  • In case of collecting standard header directory or analyzing without standard header, it should be analyzed after deleting default
value ”[cpp]“ and changing into blank.
include- header-file
Set additional macro or DEFINE, enforcing them to be included regardless of actual inclusion. Refer to appendix ‘Built-in-Header Setting’.
show-cpp- detail-infoFalseConfigure whether to display C pre-processor information on Admin Console.
convert- trigraphFalseSets if activate trigraph conversion or not.
is-amdocsFalseOption for Amdocs-C processing.
Encoding-Options
read-encodingeuc-krConfigure encoding type of source file.
USA-Options * Can be ignored in security inspection.
usa-do-interTrueConfigure whether to analyze Inter Class.
usa-overflow- limit4Limit number of result data in USA analysis.
usa-timeout10Configure time limit per file in USA analysis. Unit = seconds.
usa-versionusa-1

Select a version of USA engine.

  • usa-1 : usa version 1 will be used. The engine will analyze strings for each file.
  • usa-2 : usa version 2 will be used. Performance and accuracy are better than usa version 1.
usa2-fg-ncfa2Set function call depth for inter-procedural analysis. The larger number, the more accurate but its performance would be affected.
usa2-cpu2Number of processors that usa version 2 engine will use.
usa2-analysis- file-depth3Set file relationship depth for inter-procedural analysis. The larger number, the more accurate but its performance would be affected.
usa2-path- sensitivetrueIndicate path sensitive analysis. It will more exactly calculate execution paths but its performance would be affected.
usa2-file- timeout10Set timeout for each cluster when applying usa version 2 engine. (Unit: seconds).
usa2-extract- timeout10Set timeout for assembling strings after finishing usa version 2 engine's calculation. (Unit: seconds).
usa2-builtin
Set builtin file to assign library or return value of unknown function.
usa2-abstract- parser
Set abstracted parser for usa version 2 engine. It can help improving accuracy by validating extracted results.
usa2-consttrue

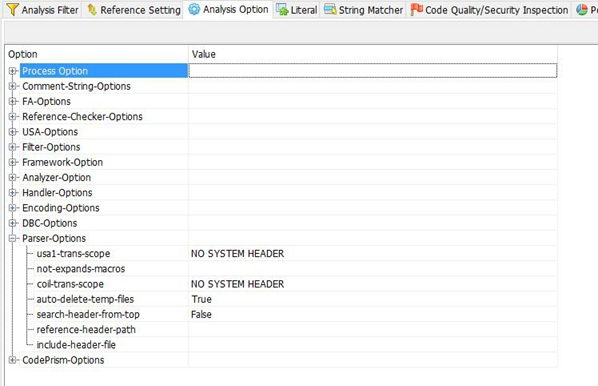

C++ language


AttributeDefault valueDescription
Parser-Options
useFilePrefix- forGlobalObjTrue

Specifies if it will generate key value of dependency and global object with file dependency.

  • If the option is true, dependency information is generated based on the current file and its “include” relationship only.
  • If the options is false, regardless of include relationship, dependency information is generated if full names are same.
not-expands- macros
It will not expand macros specified in this option. “,” can be used for separator.
coil-trans- scopeNO SYSTEM HEADER

Specifies conversion scope for security analysis.

  • NO SYSTEM HEADER : Converts user header and source only excepting system header.
  • ONLY SOURCE : Converts the current file only excepting header.
ALL : Converts all scopes.
usa1-trans- scopeNO SYSTEM HEADER

Specifies conversion scope for USA analysis.

  • NO SYSTEM HEADER:: Converts user header and source only excepting system header.
  • ONLY SOURCE: Converts the current file only excepting header.
  • ALL: Converts all scopes.
auto-delete- temp-filesTrue

It sets whether temporary file is maintained or not.

The temporary file include EXEC SQL processing history, source file including header content etc.

  • FALSE value will keep the temp file regardless of error
  • Temp file is useful for checking analysis accuracy (Temp file: after processing Exec Sql, after expanding C file, CPP log)
  • Temp file has ‘[source file name].conv2’ format and is located at: [Installation Directory]/SRC/temp/[Analysis Unit ID]
search-header- from-topFalse

Search header files with the current Analysis Unit's file path when searching user defined header file (#include “…” format).

If this option value is true, header files in which high priority Analysis Unit are expanded first.
reference- header-path
User can input path within Analysis Server for not-collected header files but required header information. It is considered as a system header.
include- header-file
Separately set special Macros or DEFINEs to enforce them included in source file. Please refer to ‘Built-in-Header setting’.
include-c- header-file
It is same as “include-header-file” option. It processes files that their file extension is “C”.
report-cannot- find-includeFalseIt determines whether showing warnings for missing 'include files' or not.
c-extensionsC,PC,SCIt determines file extension for C language syntax. The “,” is used for a separator. It is case-insensitive.
Encoding-Options
reading- encodingeuckrSets encoding type of source file.
USA-Options * Can be ignored in security inspection
usa-do-interFalseDetermines Inter Class analysis.
usa-overflow- limit4Limits the result data count of USA analysis.
usa-timeout10Limits USA analysis timeout per file. Unit = seconds.
usa-versionusa-1

Select version of USA engine.

  • usa-1 : usa-1 : Universal String Analysis engine version 1. It analyzes strings per each source file.
  • usa-2 : usa-2 : Universal String Analysis engine version 2.
usa2-fg-ncfa2It means function call depth for inter-procedural analysis. The greater the number results in more accurate analysis but lower performance.
usa2-cpu2It means the number of processes which USA 2 will use.
usa2-analysis- file-depth3It means file dependency depth. The greater the number results in more accurate analysis but lower performance.
usa2-path- sensitivetruePath sensitive analysis. If this option is turned on, more accurate analysis would be performed but it results in low performance.
usa2-file-timeout10It sets timeout value per each cluster of Universal String Analysis engine version 2 (unit: sec.)
usa2-extract- timeout10It sets timeout value for string composition after finishing calculation of Universal String Analysis engine version 2 (uit: sec.).
usa2-builtin
It sets a built-in file which is used to specify unknown return value of function or library.
usa2-abstract- parser
It specifies abstraction parser for Universal String Analysis version 2. The abstraction parser can improve accuracy by validating extracted strings.
usa2-consttrue

It specifies whether the engine calculates numbers such as integer and double etc. or not. \\- true : true : calculate number.

  • false: not calculate number. The numbers will be considered as strings.
usa2-print-timetrueIt prints log for Universal String Analysis engine version 2.
usa2-struct- delimiter@#It is a delimiter for fields. If a literal parameter type is not String but Struct or Class, the result string will include filed name of the struct or class. The delimiter will be used to separate each field.
usa2-struct- delimiter-kv@#It is a delimiter for field name and extracted value. If a literal parameter type is not String but Struct or Class, the result string will include filed name of the struct or class. The delimiter will be used to separate the name of field and extracted value.

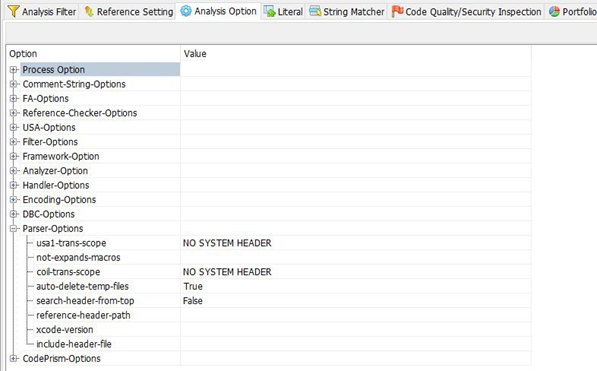

Objective C language


AttributeDefault valueDescription
Parser-Options
useFilePrefix- forGlobalObj
True

Specifies if it will generate key value of dependency and global object with file dependency.

  • If the option is true, dependency information is generated based on the current file and its “include” relationship only.
  • if the options is false, dependency information is generated based on the same full name, regardless of “Include” relationship.
not-expands- macros

It will not expand macros specified in this option. “,” can be used for separator.
coil-trans-scope
NO SYSTEM HEADER

Specifies conversion scope for security analysis.

  • NO SYSTEM HEADER: Converts user header and source only excepting system header.
  • ONLY SOURCE: Converts the current file only excepting header.
ALL: Converts all scopes.
usa1-trans- scopeNO SYSTEM HEADER

Specifies conversion scope for USA analysis.

  • NO SYSTEM HEADER: Converts user header and source only excepting system header.
  • ONLY SOURCE: Converts the current file only excepting header.
ALL: Converts all scopes.
auto-delete- temp-files
True

It sets whether temporary file is maintained or not.

The temporary file include EXEC SQL processing history, source file including header content etc.

  • FALSE value will keep the temp file regardless of error.
  • Temp file is useful for checking analysis accuracy (Temp file: after processing Exec Sql, after expanding C file, CPP log)
  • Temp file has ‘[source file name].conv2’ format and is located at: [Installation Directory]/SRC/temp/[Analysis Unit ID]
search-header- from-top
False

Search header files with the current Analysis Unit's file path when searching user defined header file (#include “…” format).

If this option value is true, header files in which high priority Analysis Unit are expanded first.
reference- header-path

User can input path within Analysis Server for not-collected

header files but required header information. It is considered as a system header.

include-header-file


Separately set special Macros or DEFINEs to enforce them

included in source file. Please refer to ‘Built-in-Header setting’.
xcode-version

input xcode’s version.
Encoding-Options
reading- encoding
euckrConfigure encoding type of source file.
USA-Options * Can be ignored in security inspection
usa-do-inter
FalseConfigure whether to analyze Inter Class.
usa-overflow-limit
4Limit number of result data in USA analysis.
usa-timeout
10Configure time limit per file in USA analysis. Unit = seconds.
